Water Butt Extension Kit 3/4" with 13mm Barb Irrigation Valve

WBEX34MF-KIT020

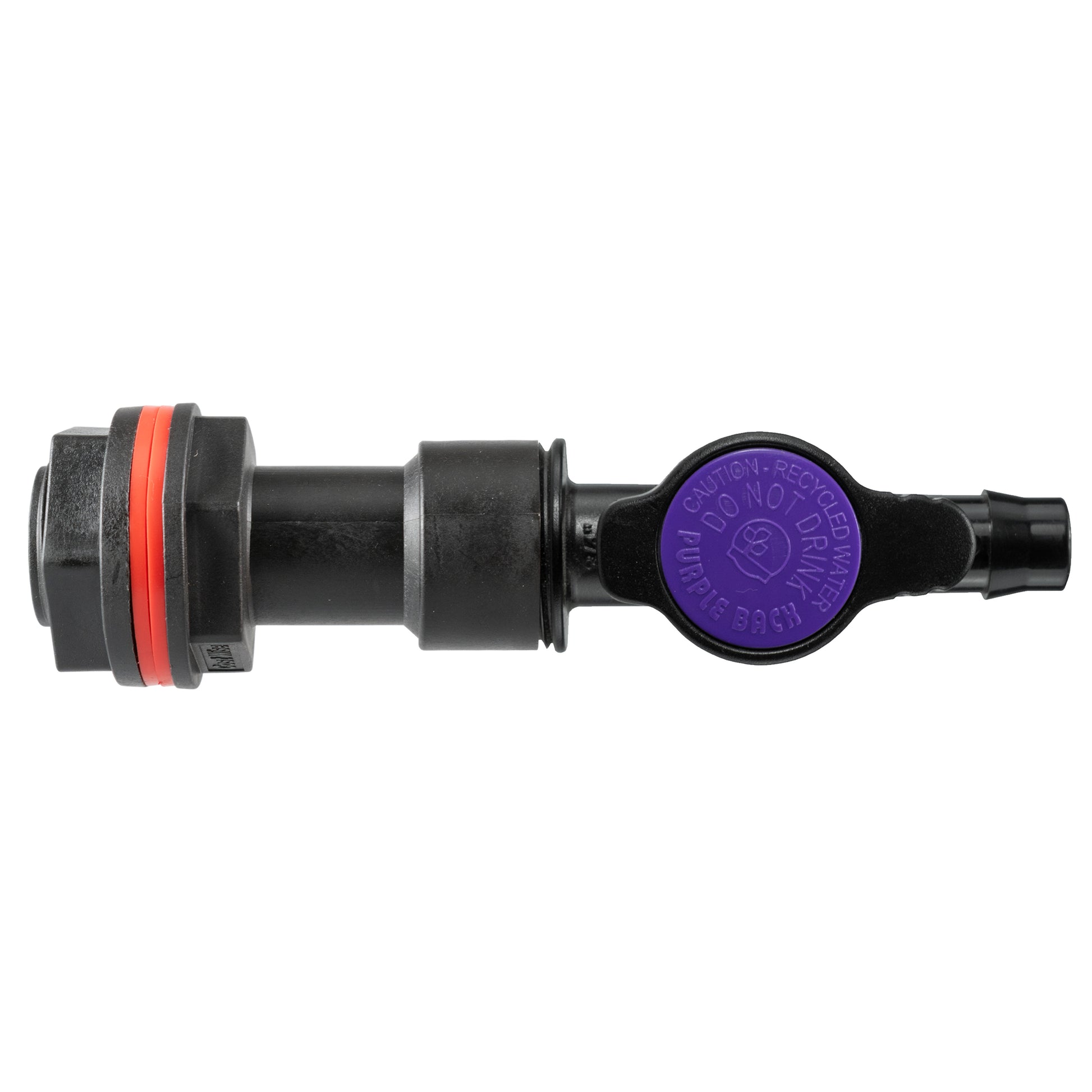

This kit contains:

• 1 x Water Butt Extension ¾” BSP (EXTENSION34BSPM-F)

• 1 x Nut (BUTT34BSPM-NUT)

• 2 x Washers (BUTT34BSPM-WASHER)

• 1 x Irrigation Valve ¾” BSP – 13mm Barb (A46705-VALVE13-34BSPM)

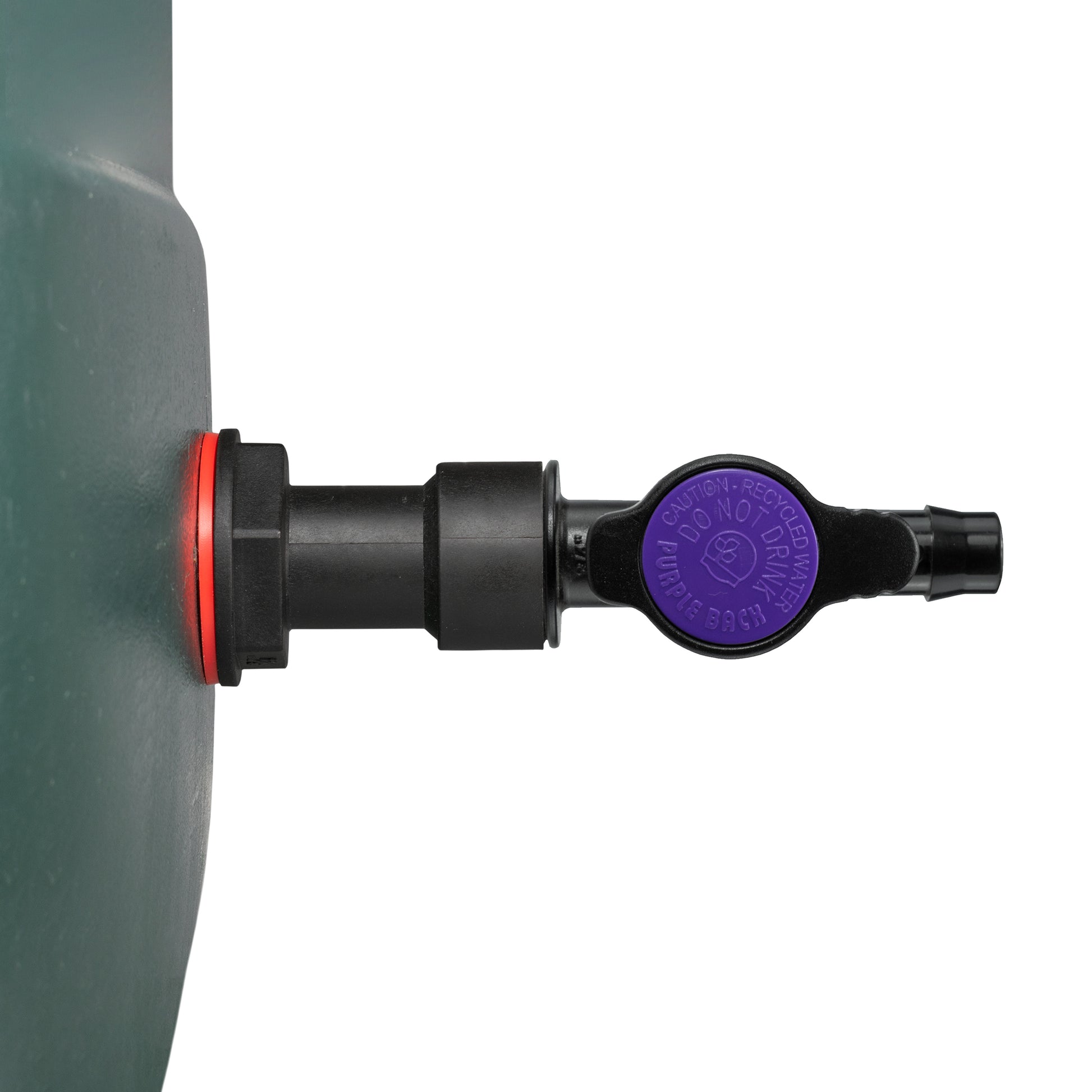

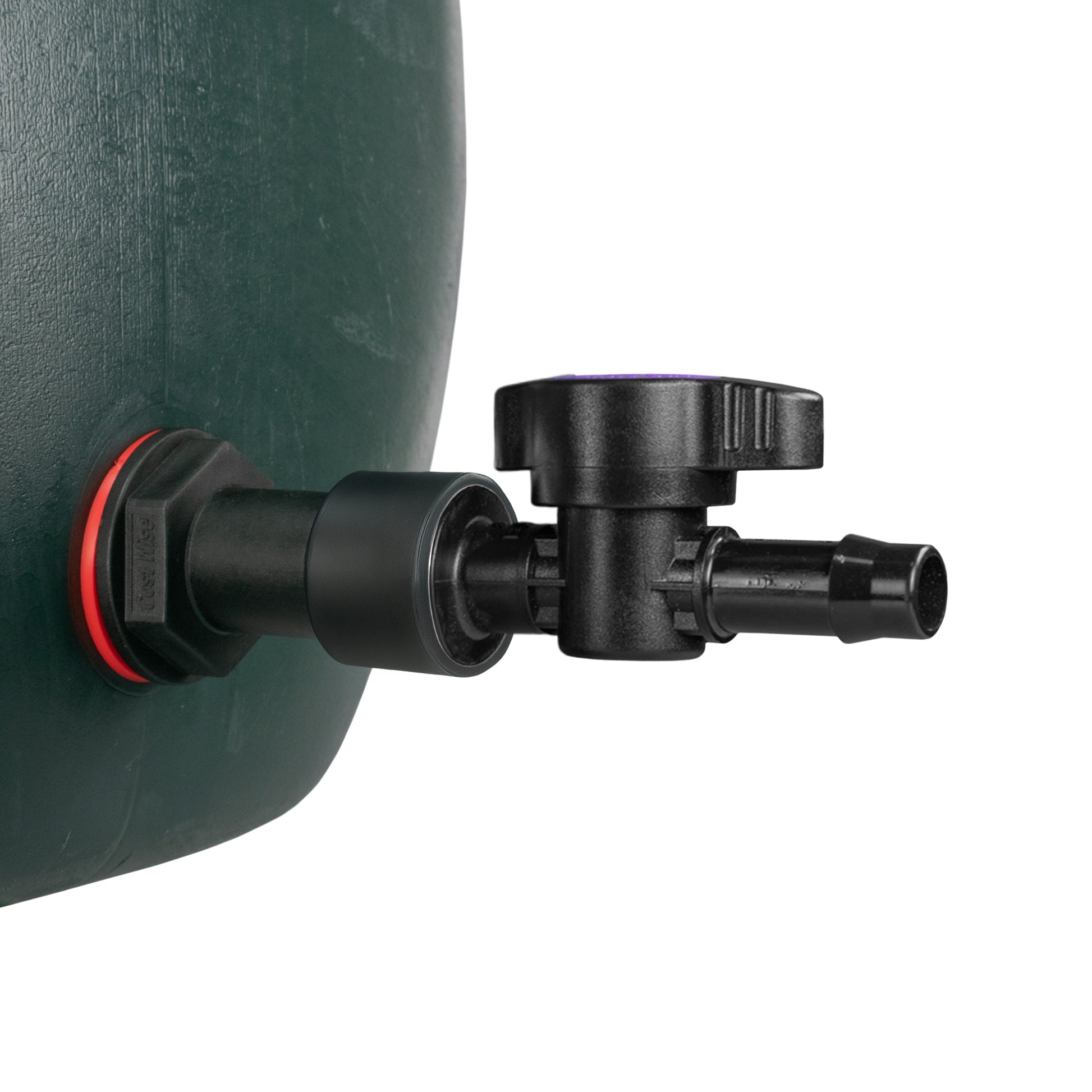

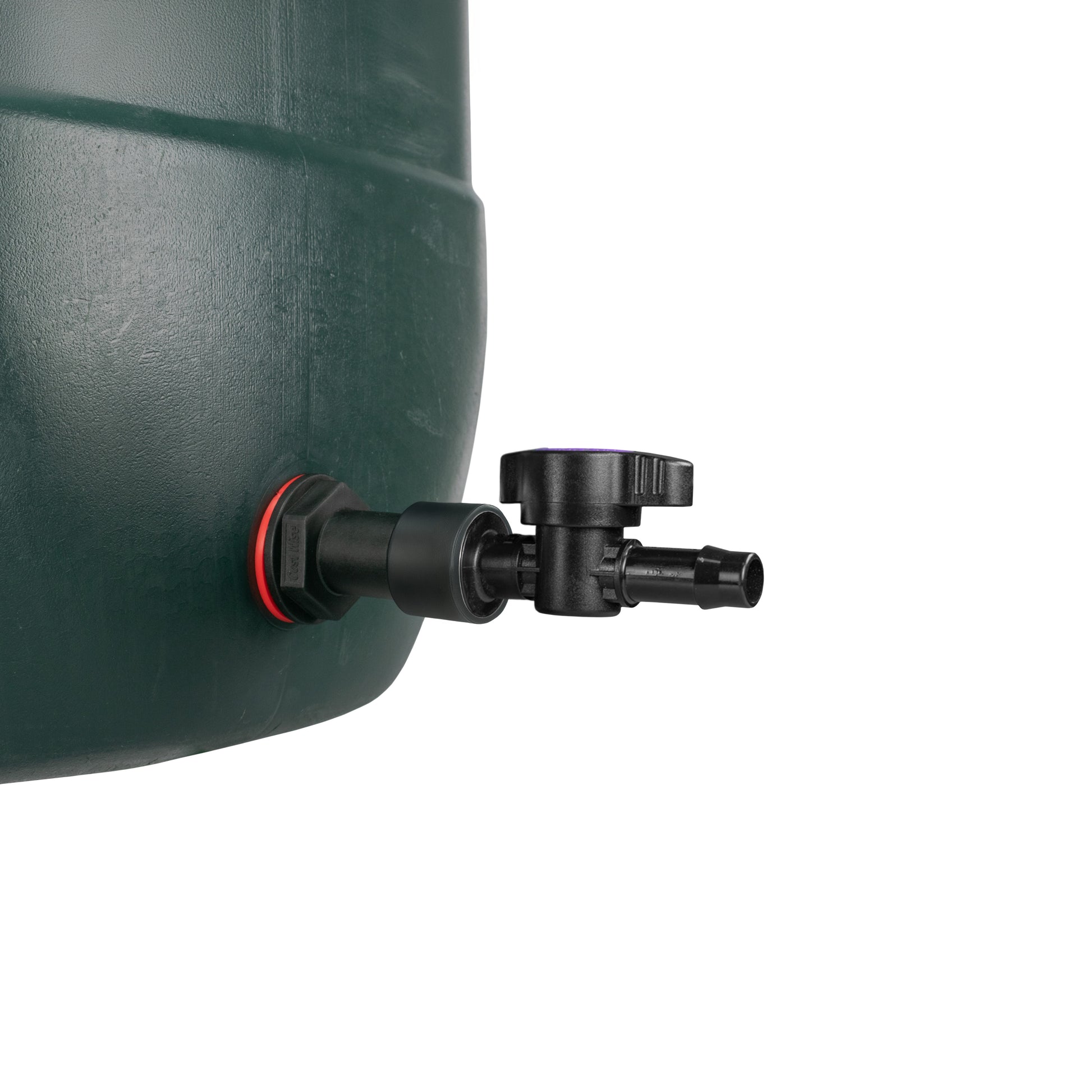

The water butt extension connector is a versatile accessory designed to enhance the functionality of your water butt or rain barrel. Featuring a BSP male thread on one end and a BSP female thread on the other, this connector provides a convenient 50mm extension, making it easier to fill watering cans or attach a hose.

The device has a 3/4" BSP thread size which fits a 26mm hole. For installation, the connector can be effortlessly screwed into existing female threads on your container. This is an ideal solution if your water butt already has pre-installed threads. However, if your barrel lacks a pre-existing thread, the connector can still be installed by creating a hole in the desired location.

Once installed, the connector extends outward by 50mm, providing ample space for attaching hoses or filling containers. This extension allows for easier access to the water stored in your barrel, enhancing the overall usability of your rainwater harvesting system. Whether you are looking to improve the convenience of filling watering cans or creating a more accessible outlet for a garden hose, the water butt extension connector is an essential upgrade for any rainwater collection setup.

The Back Nut and Washers in this kit are used to secure the water butt extension to a water butt. The back nut provides a secure lock, ensuring that the fitting remains in place even under pressure. The Back Nut and Washers combination is easy to install and remove, making it a practical choice for both temporary and permanent setups. The robust construction of these components ensures durability and longevity, even in demanding environments.

The washers in this set play a crucial role in distributing the load evenly across the surface, which helps in preventing any potential damage or deformation that might occur during the tightening process. Additionally, the washer provides an effective seal, minimizing the risk of leaks and ensuring a watertight connection. This feature is particularly important in applications involving fluids, as it helps maintain the integrity of the system and prevents wastage.

The Threaded Purple Back Valve ¾” BSP Male Thread Irrigation Fitting is designed for efficient and reliable low-pressure irrigation applications. Its primary function is to provide simple on/off operation with straight-through flow, which facilitates easy and straightforward control of water flow in various irrigation systems.

Constructed to withstand operating pressures of up to 300 kPa, this valve is suitable for a range of low-pressure irrigation scenarios, including those fed by rainwater tanks or other non-pressurised water sources. The purple back cap distinguishes this fitting as intended for recycled water applications, helping to prevent cross-contamination and ensuring safe usage in systems designed to conserve water.

Durability is a key feature of the Threaded Purple Back Valve. It is made from UV-stabilised materials, which protect it from degradation due to prolonged exposure to sunlight. This UV resistance extends the lifespan of the fitting, making it a cost-effective solution for long-term irrigation projects. The robust construction ensures that the valve can handle the rigors of outdoor environments without compromising performance.

Please note, this kit is not sold with PTFE Tape. Tape will need to be purchased separately.
